NF series of membrane elements performance

Name: NF series of membrane elements performance
SKU: 363
Rating: 5 (1362 reviews)

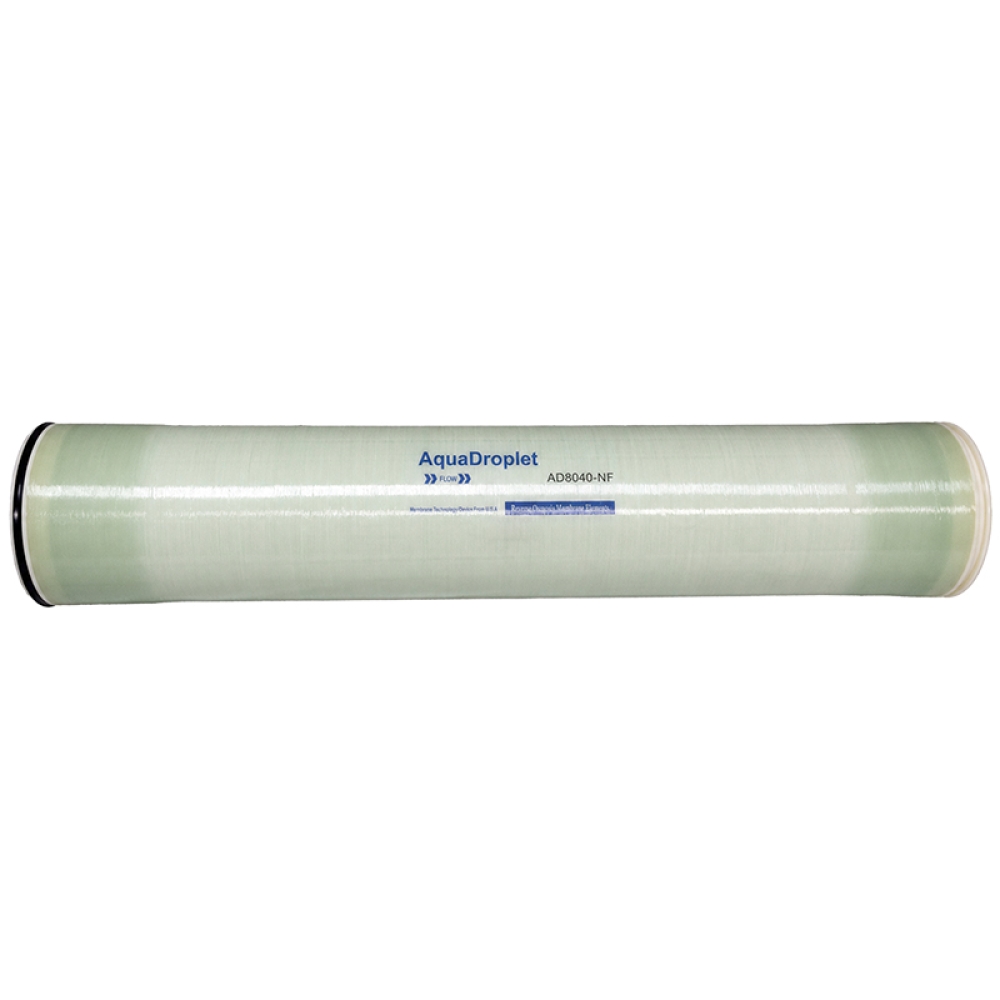

Model:AD8040-NF

Max. Working Pressure: 600 psi (4.14MPa)

Max. Feed Temperature: 45℃

Max. Feed TDS: 2000 ppm

Max. Feed Hardness: 60 ppm

Max. SDI (15psi): 5

Max. Turbidity: 1.0 NTU

Residual Chlorine in Feed Water: ＜0.1 ppm

Continuous Operating pH Range: 3 ~ 10

Max. Feed COD:10ppm; BOD:5ppm; TOC:10ppm

Max. Single Element Pressure Drop: 15psi (0.1MPa)

Add To Inquiry SEND INQUIRY

Description

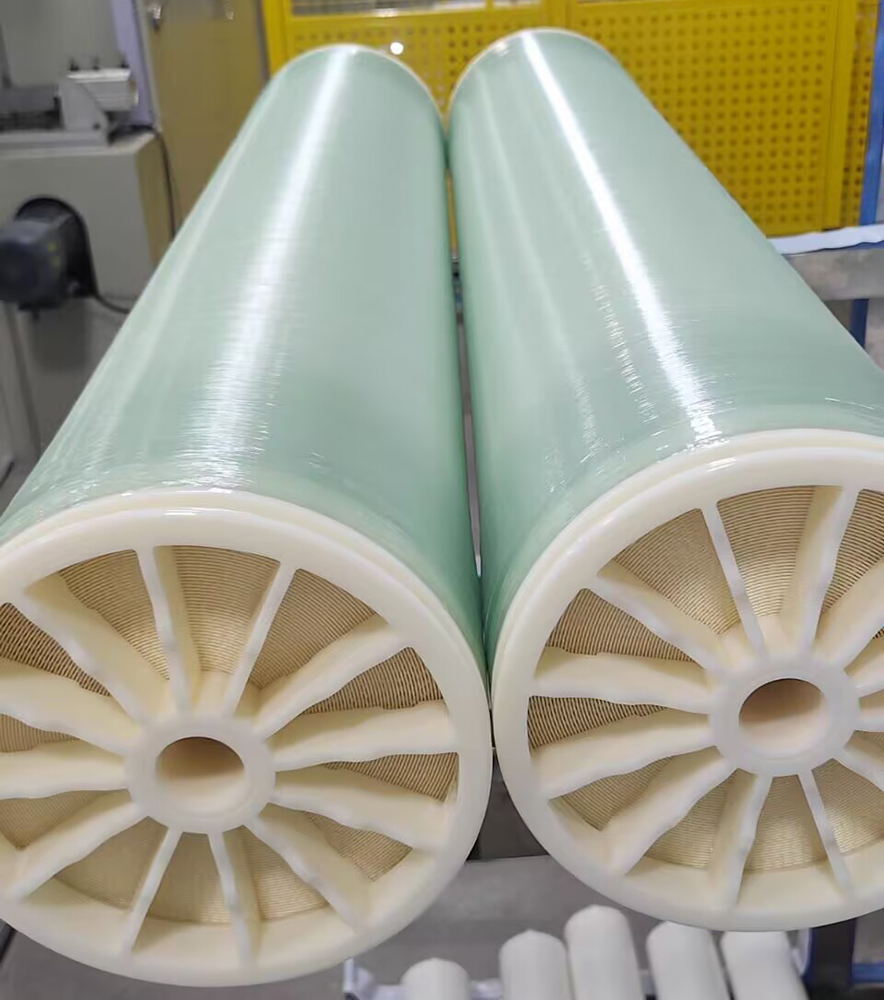

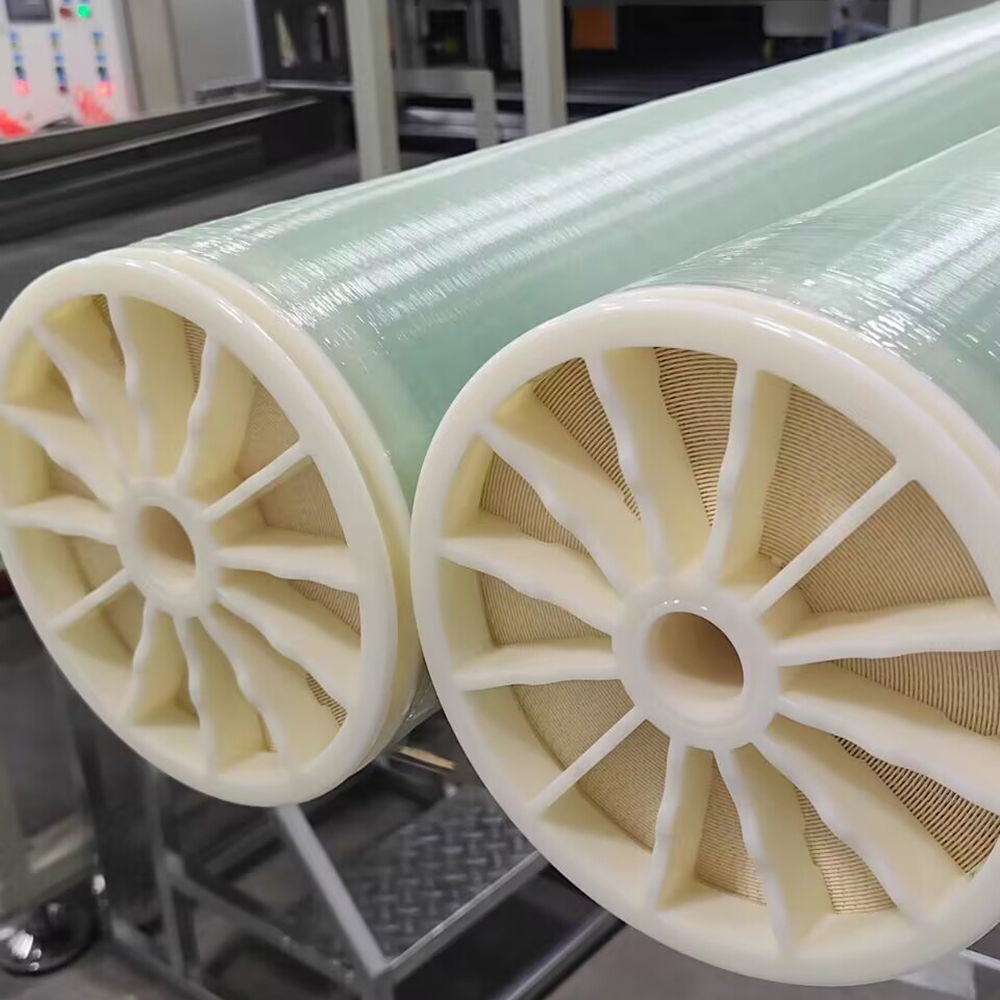

NF Series Nanofiltration Membrane Elements:

The NF series nanofiltration membrane elements deliver high permeate flow and outstanding desalination performance, making them ideal for large-scale industrial and municipal water treatment systems.

They feature excellent removal efficiency for pesticides, viruses and bacteria, strong retention of natural organic matter, and moderate rejection of total hardness.

Built with innovative technology, these elements possess a robust membrane surface and superior oxidation resistance. Operation under ultra-low pressure can greatly enhance system efficiency and reduce operational costs.

NF Series Nanofiltration Membrane Elements

Our NF series nanofiltration membrane elements achieve high permeate flux and excellent desalination capacity, perfectly suited for large-scale industrial water treatment and municipal water purification projects.

✅ Core Advantages

*Excellent removal of pesticides, viruses and bacteria

*High retention efficiency of natural organic substances

*Moderate rejection rate against total hardness

*Reinforced membrane surface with outstanding anti-oxidation performance

*Supports ultra-low pressure operation, lowering overall system energy consumption & operating cost

NF series of membrane elements performance:

Model	Membrane ft²(m²)	Average Permeate GPD(m³/d)	Stable Rejection%	Min. Rejection%

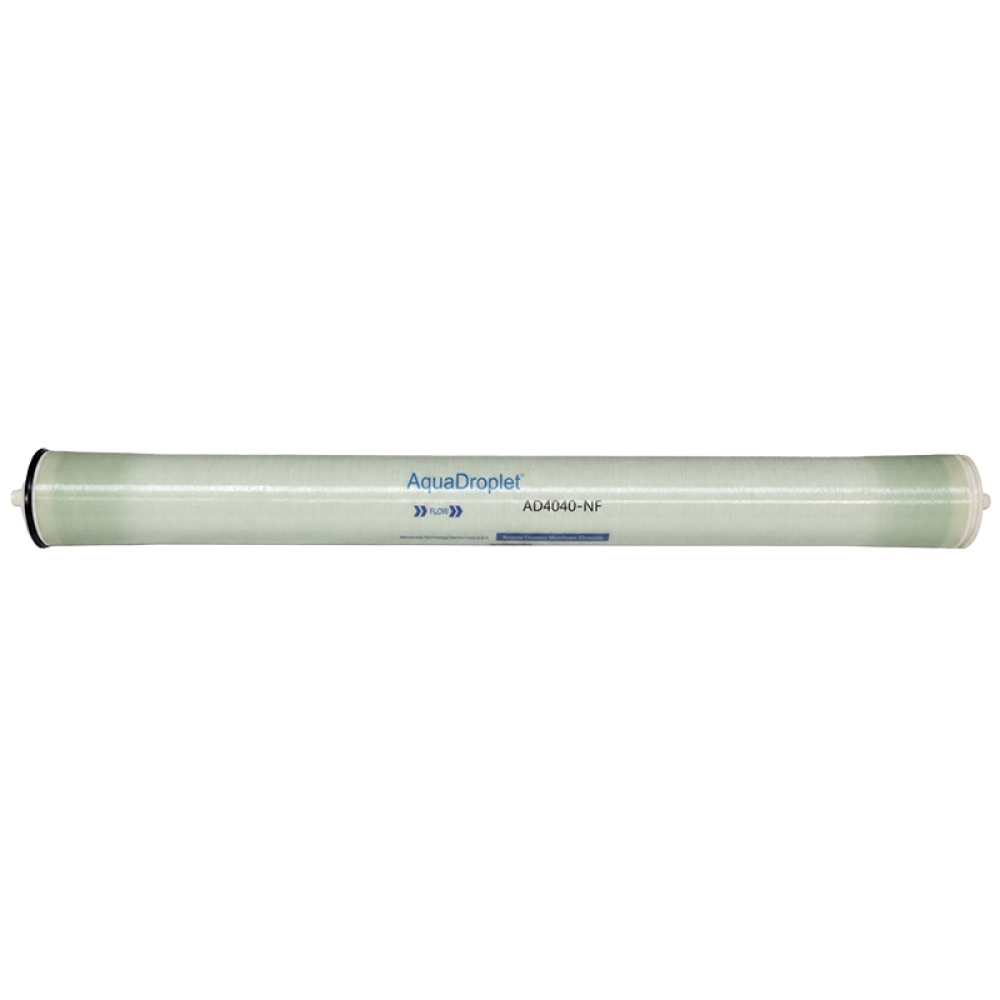

AD4040-NF	85（7.9）	2200 (7.9)	55~75	-
AD8040-NF	400（37）	9000 (33.9)	55~75	-

NF series of membrane elements Testing Conditions:

Testing Pressure	70 psi (0.48MPa)
Temperature of Testing Solution	25 ℃
Concentration of Testing Solution (NaCl)	2000ppm NaCl；2000ppm MgSO
pH Value of Testing Solution	8
Recovery Rate of Single Element	15%

NF series of membrane elements Operation Limits & Conditions:

Max. Working Pressure	600psi（4.14MPa）	Max. Feed Water COD	10ppm
Max. Feed Water Flow	75gpm（17m3/h)For 8040 16gpm（3.6m3 )For 4040	Max. Feed Water BOD	5ppm
Max. Feed Water Flow	75gpm（17m3/h)For 8040 16gpm（3.6m3 )For 4040	Max. Feed Water TOC	10ppm
Max. Feed Water Temperature	45℃	Residual Chlorine Concentration of Feed Water	＜ 0.1ppm
Max. Feed Water TDS	2000ppm	pH Range of Feed Water During Continuous Operation	3 ～ 10
Max. Feed Water Hardness	60ppm	Max. Pressure Drop of Single Element
Max. Feed Water SDI 15psi	5		15psi（0.1MPa）8040、4040
Max.Turbidity NTU	1.0		15psi（0.1MPa）8040、4040
