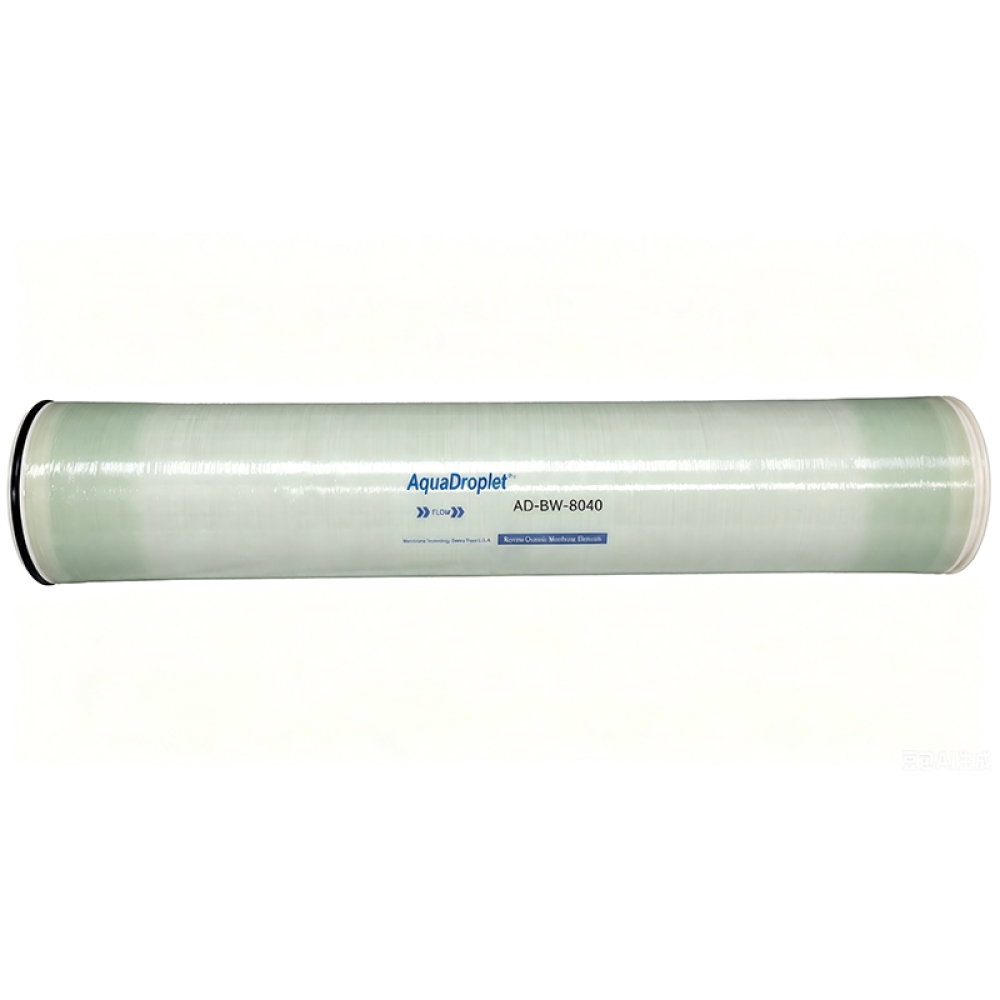

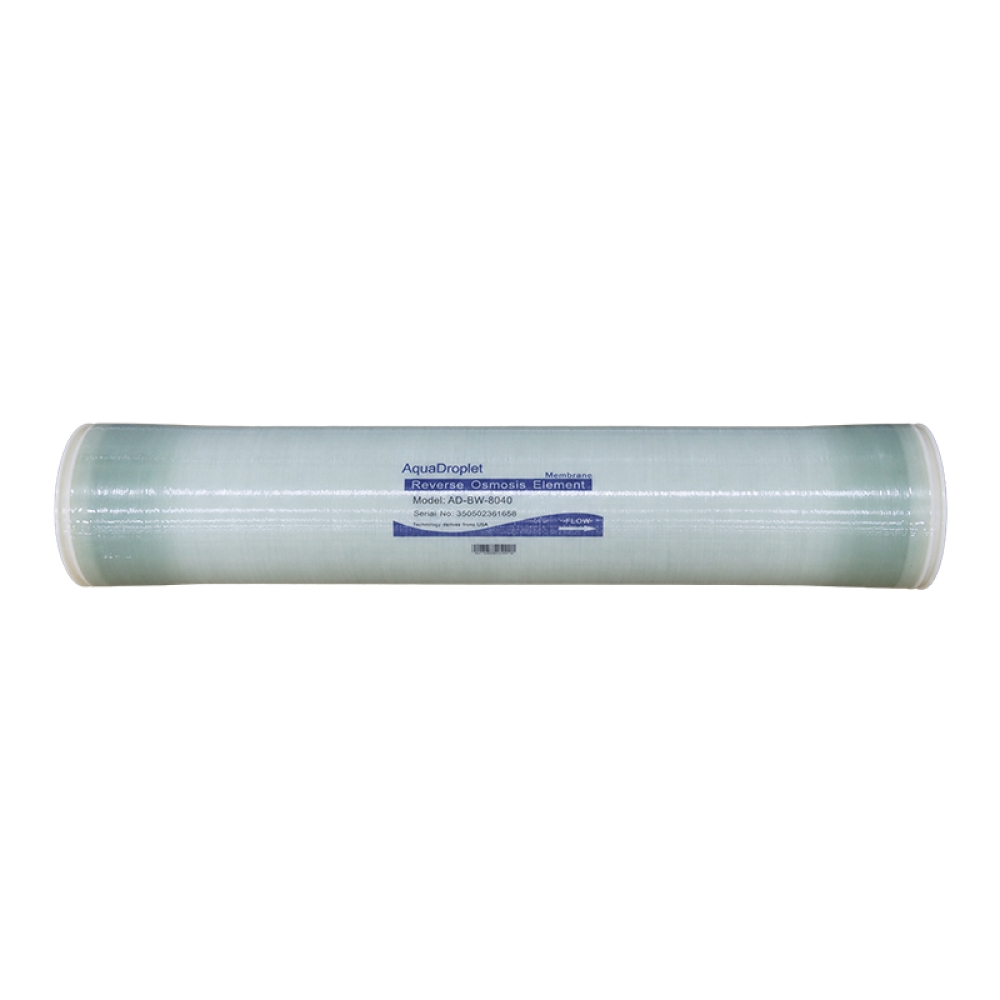

AquaDroplet AD-BW-8040 Industrial Brackish Water RO Membrane Element 8 inch 10500 GPD
AquaDroplet AD-BW-8040 Industrial Brackish Water RO Membrane Element 8 inch 10500 GPD
AquaDroplet AD-BW-8040 Industrial Brackish Water RO Membrane Element 8 inch 10500 GPD
AquaDroplet AD-BW-8040 Industrial Brackish Water RO Membrane Element 8 inch 10500 GPD
AquaDroplet AD-BW-8040 Industrial Brackish Water RO Membrane Element 8 inch 10500 GPD
AquaDroplet AD-BW-8040 Industrial Brackish Water RO Membrane Element 8 inch 10500 GPD

AquaDroplet AD-BW-8040 Industrial Brackish Water RO Membrane Element 8 inch 10500 GPD

Model:AD-BW-8040

Maximum Working Pressure:600 psi (4.14 MPa)

Maximum Feed Water Temperature:45°C
Maximum Feed Water TDS:5000 ppm
Maximum Feed Water Hardness:60 ppm
Maximum SDI15:5
Maximum Turbidity:1.0 NTU
Maximum Feed Water COD:10 ppm
Maximum Feed Water BOD:5 ppm
Maximum Feed Water TOC:10 ppm
Residual Chlorine:<0.1 ppm
Feed Water pH Range:2–12
Maximum Pressure Drop (Single Element):15 psi (0.1 MPa) for 8040/4040
10 psi (0.07 MPa) for 4021
Add To InquirySEND INQUIRY

Description

Brief Introduction
The BW series is an aromatic polyamide composite membrane element for brackish water desalination. It has the characteristics of high water production and good desalination performance. In addition, it has high performance in removing soluble salts, TOC, and SiO 2, and is especially suitable for the making of highly purified water in the electronics and power industries.
It is suitable for desalination treatment of surface water, groundwater, tap water, and municipal water with salt content less than 10,000 ppm. It is mainly used for industrial pure water of various scales, boiler feed water of power plants, and other industrial water. It can also be used for the treatment of brackish water applications such as high-concentration saline wastewater and beverage water manufacturing.In the

FR series, the surface of this membrane was treated by special technology, which changed the electric charge and smoothness of the membrane surface, increased the hydrophilicity of the membrane surface, thus reducing the contamination of pollutants and microorganisms on the membrane surface, and achieving the purpose of reducing the contamination of membrane components and prolonging the service life.

Scope of Application
It is mainly used in various fields of industry, such as pure water, boiler recharge water, food processing and pharmaceutical manufacturing.
BW series of membrane elements performance

Model
 Membrane  ft²(m²)
 Average Permeate GPD (m3/d)
 Stable Rejection %
 Min. Rejection %
AD-BW-4021
 36 (3.3)
 950 (3.6)
 99.5
 99
AD-BW-4040
 85 (7.9)
 2000 (7.6)
 99.5
 99
AD-BW-8040
 400 (37)
 10500 (39.5)
 99.5
 99
AD-BW-4040FR
 85 (7.9)
 1900 (7.2)
 99.6
 99
AD-BW-8040FR
 400 (37)
 9500 (36)
 99.6
 99
BW series of membrane elements Operation Limits & Conditions
Max. Working Pressure
 600psi（4.14MPa）
 Max. Feed Water COD
 10ppm
Max. Feed Water Flow
75gpm（17 m 3 /h）For 8040
16gpm(3.6 m 3/h) For 4040、4021
Max. Feed Water BOD
 5ppm
Max. Feed Water TOC
 10ppm
Max. Feed Water Temperature
 45℃
 Residual Chlorine Concentration of Feed Water
 ＜ 0.1ppm
Max. Feed Water TDS
 5000ppm
 PH Range of Feed Water During Continuous Operation
 2 ～ 12
Max. Feed Water Hardness
 60ppm
Max. Pressure Drop of Single Element
15psi（0.1MPa)For8040、4040
Max. Feed Water SDI 15
 5
 10psi（0.07MPa)For 4021
Max.Turbidity NTU
 1
BW series of membrane elements Testing Conditions:
Testing Pressure
  225 psi (1.5MPa)
Temperature of Testing Solution
 25 ℃
Concentration of Testing Solution (NaCl)
 2000ppm
pH Value of Testing Solution
  7.5
Recovery Rate of Single Element
 15%(8040、4040、2540)；8% (4021、2521)




MembraneMembranawater membranemembrana de aguaRo MembraneReverse Osmosis Membrane
Previous:AD-ULPH-4040 Ultra Low Pressure Reverse Omosis Membrane
Next:SW(Sea Water) Membranes

Contact Suppliers

Attach Files

You May Like

UF-4046UF(Ultrafiltration) Membranes(PVDF)

UF-4046UF(Ultrafiltration) Membranes(PVDF)
UF-8060(Ultrafiltration) Membranes(PVDF)

UF-8060(Ultrafiltration) Membranes(PVDF)
UF-1060(D)(Ultrafiltration) Membranes(PVDF)

UF-1060(D)(Ultrafiltration) Membranes(PVDF)

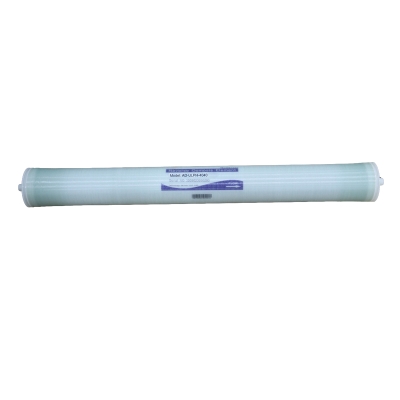

AD-ULPH-4040 Ultra Low Pressure Reverse Omosis Membrane
