3000L/H reverse osmosis RO water filtration system

3000L/H reverse osmosis RO water filtration system

The pure water produced by this water treatment equipment can be used in food, beverages, direct drinking water, metal stain removal and cleaning water, chemical additive preparation water, lamps and crafts cleaning water,

coatings and adhesives preparation water, optical glass cleaning water, disinfectants, detergents and other fields.

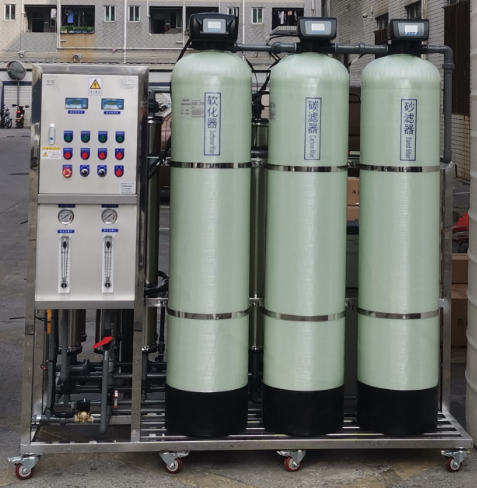

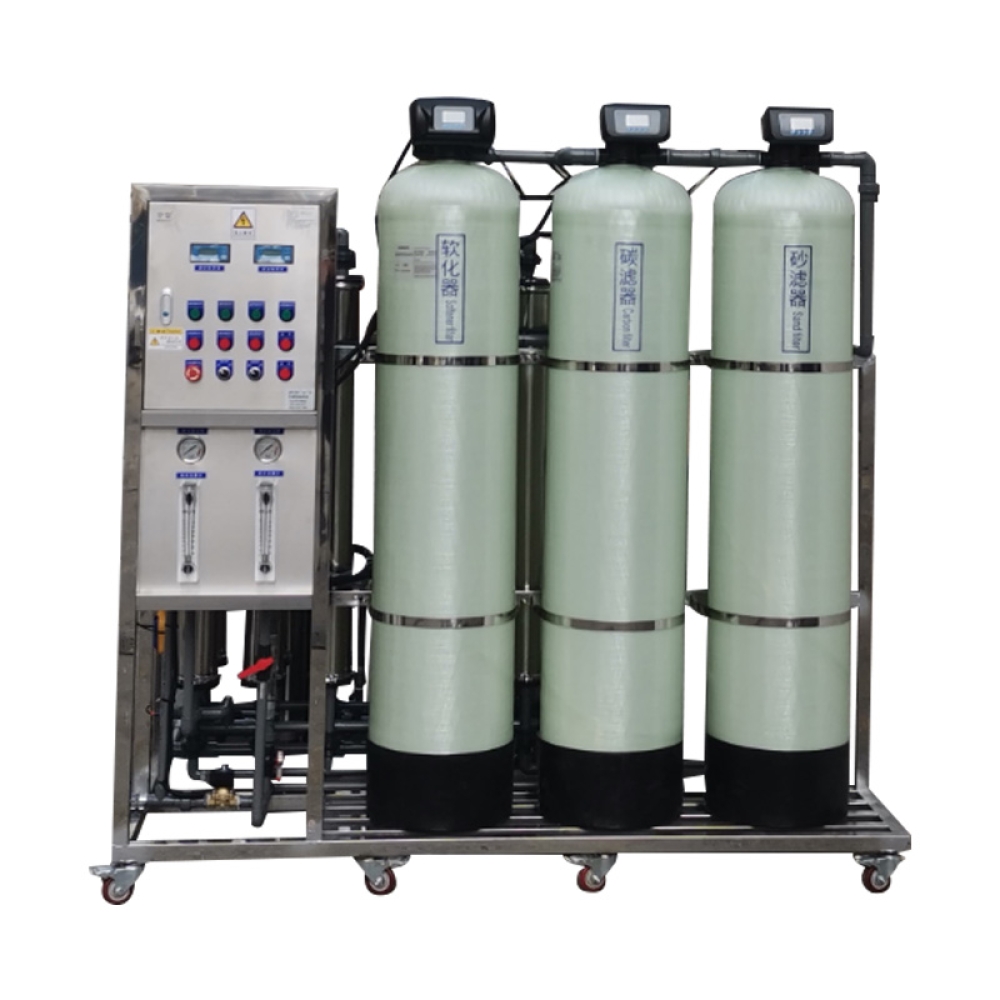

Process flow: medium filter + active carbon filter + softening filter + precision filter +RO reverse osmosis membrane

Main uses

Desalination and purification

Remove soluble salts (such as calcium, magnesium, sodium ions) and heavy metals (lead, arsenic, mercury, etc.) from water to produce high-purity water.

Microbial control

Filter bacteria, viruses, colloids, etc. to reduce the risk of biological contamination.

Chemical removal

Remove harmful components such as organic matter (pesticides, dyes), fluoride, nitrates, etc.

Water softening

Replace traditional ion exchange resins to solve the problem of hard water scaling.

Typical application sites

1. Industrial production

Electronics/semiconductors: Ultrapure water is used for chip cleaning and wafer manufacturing, requiring a resistivity of ≥18 MΩ·cm.

Pharmaceuticals/bioengineering: Water for injection (WFI), sterile preparation production, in compliance with GMP standards.

Electricity/energy: boiler feed water (to prevent scaling and corrosion of thermal equipment), cooling water for nuclear power plants.

Food and beverages: raw water purification (such as bottled water, beer brewing), equipment cleaning water.

Chemicals/electroplating: process water (such as plating solution preparation), wastewater reuse.

2. Environmental protection and resource recycling

Wastewater treatment: recovery of heavy metals and dyes in electroplating wastewater and printing and dyeing wastewater to achieve zero emissions.

Seawater desalination: fresh water supply for coastal areas or ships, with lower energy consumption than distillation.

Leachate treatment: deep purification of high-concentration organic wastewater.

3. Special industries

Medical/laboratory: dialysis water, laboratory reagent preparation, and water supply for analytical instruments.

Automobile/Painting: Ultrapure water for electrophoretic coating to avoid impurities in the paint film.

Photovoltaic/Lithium Battery: Ultrapure water required for silicon wafer cutting and electrolyte preparation.

4. Commercial and public facilities

Hotel/School: Direct drinking water system, central water purification supply.Agriculture/Greenhouse: Preparation of nutrient solution for soilless cultivation, water for high-end aquaculture.

Design data

1) Source water: Municipal tap water that meets national domestic water standards

2) Source water quality: Municipal tap water that meets standards, conductivity ≤500us/cm;

3) System design water output: 2m3/h;

4) System recovery rate: Reverse osmosis system 50-65%,

5) Equipment production and operation mode: fully automatic

RO reverse osmosis system equipment configuration list
